The SMS Log contains entries for all system SMS Activity.



To Access the SMS Log

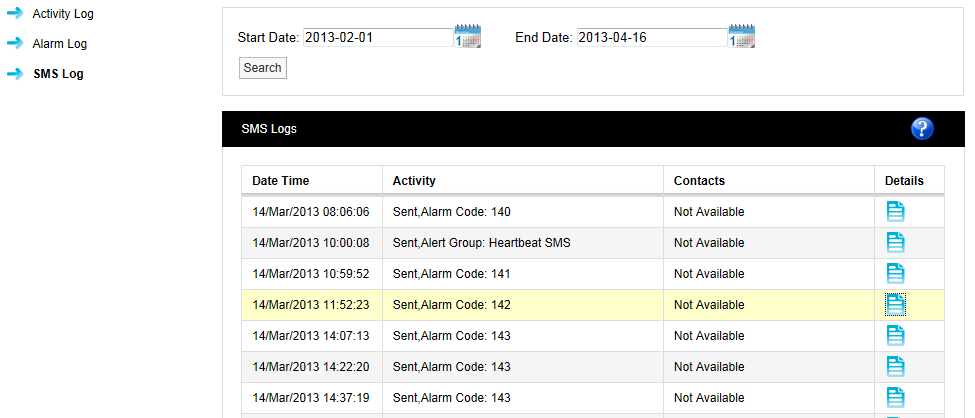

1.Select SMS Log from the Logs entry on the main menu bar to display the SMS Logs window. See Figure 656 below:



Figure 656



•The SMS Log contains a Date and Time Stamp for each SMS Log entry, Activity details, Contact details and a Details field.

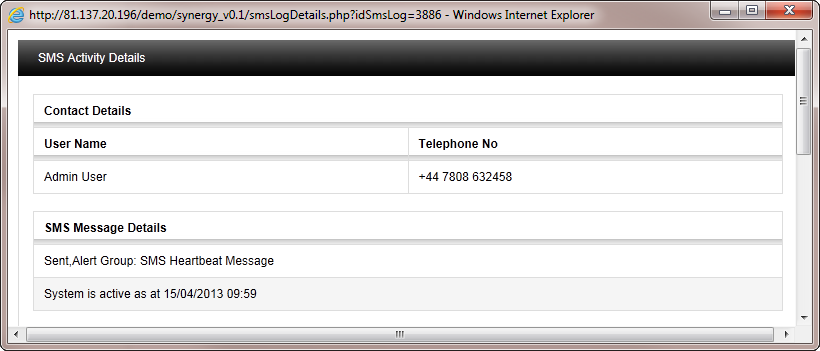

2.Click on the Details icon for the required SMS Log to display the SMS Activity Details field containing details of the message sent including the User Name and Telephone No that the SMS message was delivered to. See Figure 657 below showing, as an example, a regular system heartbeat message sent to the Admin User:



Figure 657



To search back through previous SMS Logs:

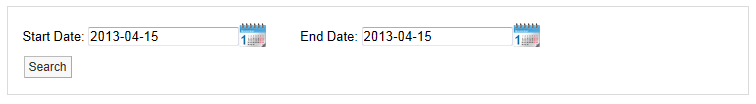

1.Use the two calendars to select a Start and End Date or enter the Start and End Dates (in the format yyyy-mm-dd) into the Start Date: and End Date: dialog boxes.

2.Click on the Search button. See Figure 658 below:



Figure 658

3.All SMS Logs between these dates will be displayed.

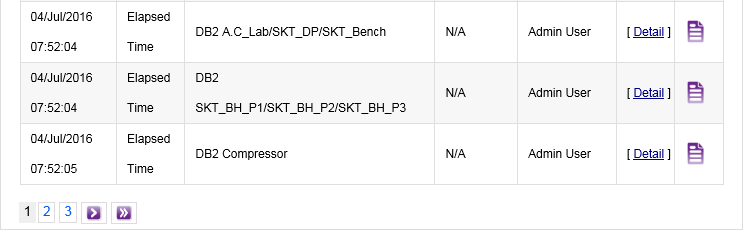

To move through available pages of SMS Log entries:

•Use the single left and right arrows at the bottom of the page will step through one page at a time.

•Use the double arrows to take you to either the first page or the last page of the search. See Figure 659 below:



Figure 659
