In the event of radio data failure, Synergy sensors can backfill the last 6 days of data into the Synergy database using using RFID communications.

Sensor Backfill

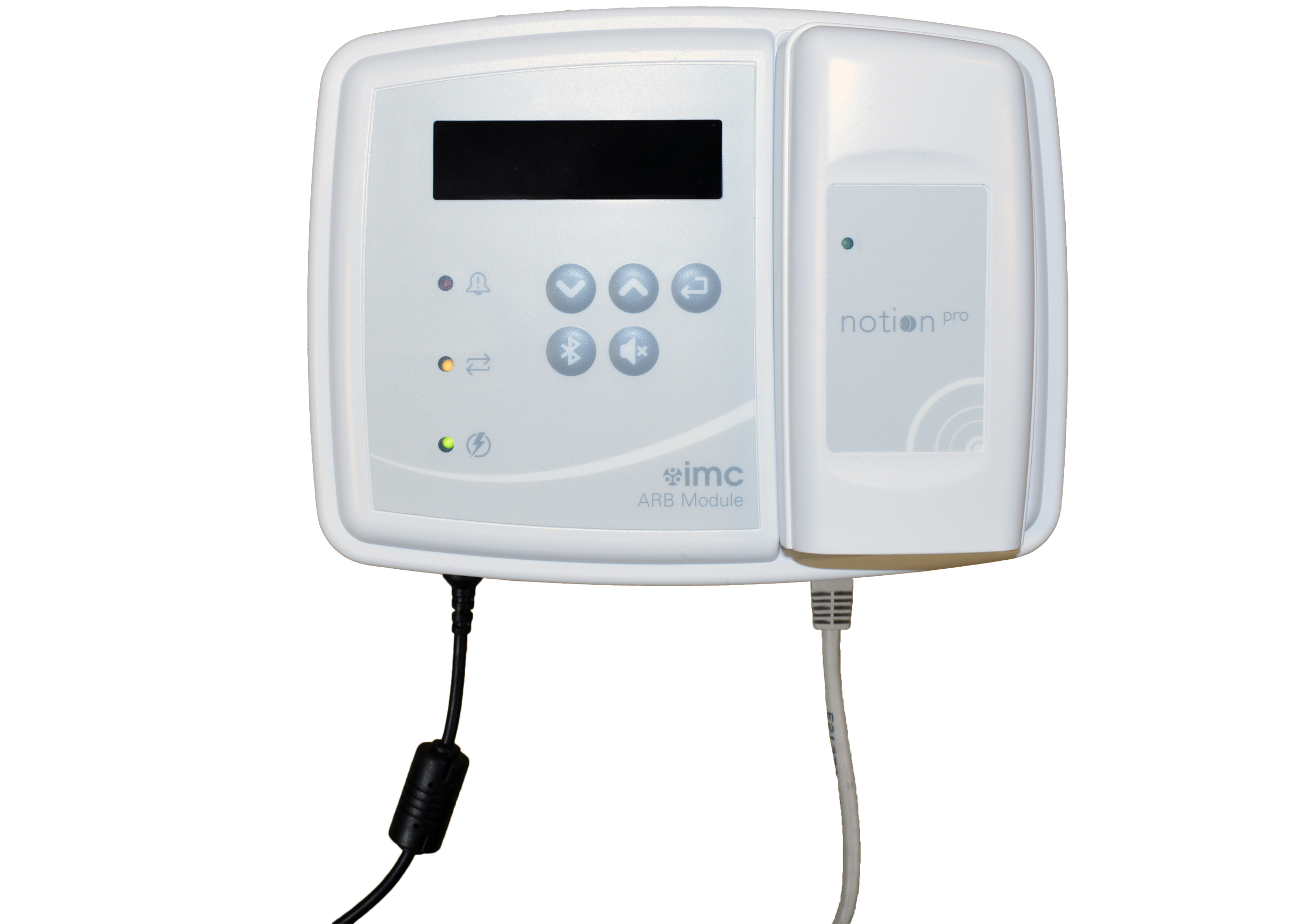

Place the sensor in the RFID cradle on the ARB Module making sure the top of the sensor is orientated towards the top of the ARB Module. See Figure 324 below:

Figure 324

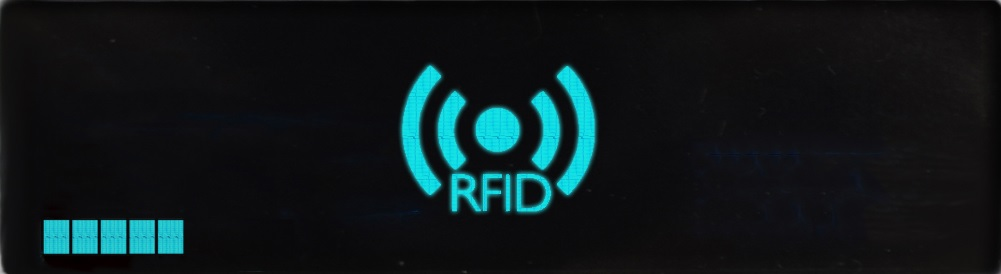

1.The OLED display will show the RFID symbol in the centre of the display, with the sensor serial number top left, and a progress indicator moving left to right along the bottom of the display. See Figure 325 below:



Figure 325

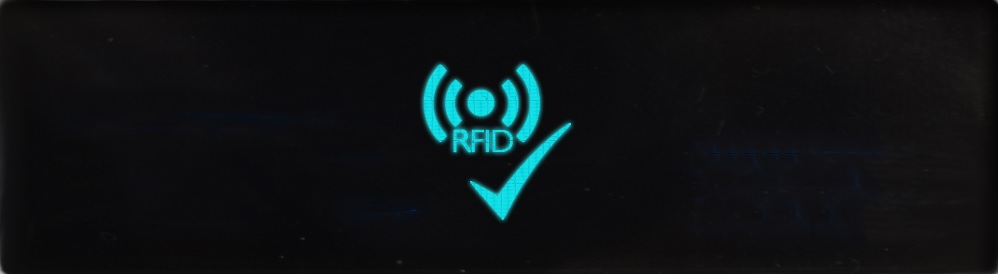

2.When backfill is completed, the display will show the RFID symbol with a tick underneath. See Figure 326 below:



Figure 326



3.Should the backfill fail, the RFID symbol will be displayed with a cross; in this case, remove the sensor from the cradle and wait for the ARB Module to return to the normal state, before retrying the backfill operation.
