This facility supports the operation of the IMC ARB Module and enables you to associate sensors with the module.



To Add ARB Module Sensors

1.Select Admin then Device Configuration from the drop down menu, located at the right hand side of the top menu bar.



Figure 335



•After selecting Device Configuration the default Database Logger Service Details window is displayed. See Figure 336 below:



Figure 336

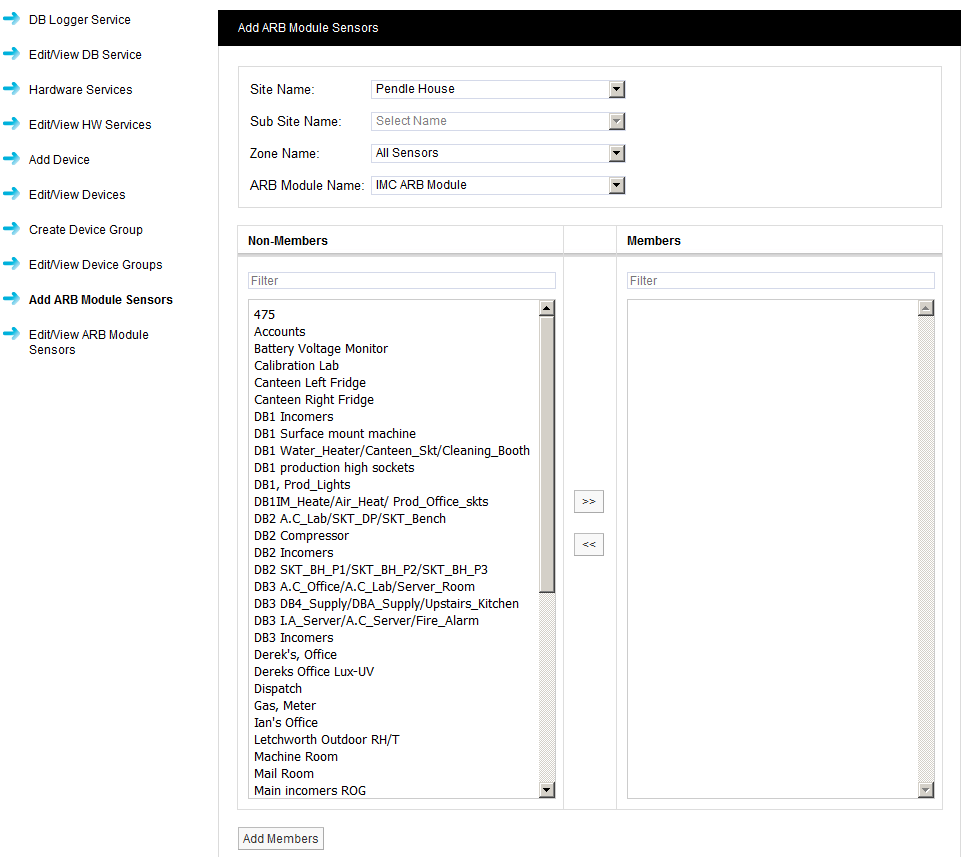

2.Select Add ARB Module Sensors from the side menu to display the Add ARB Module Sensors window. See Figure 337 below:



Figure 337

3.From the Add ARB Module Sensors window:

i.Select the Site which contains the ARB Module of interest from the Site Name: pull-down list.

ii.Select the Sub Site (if present) which contains the ARB Module of interest from the Sub Site Name: pull-down list.

iii.Select the Zone which contains the Sensors of interest from the Zone Name: pull-down list.

•A list of sensors associated with the selected Zone will be displayed in the Non-Members list when a Zone is selected from the Zone Name: pull-down list.

iv.Select the ARB Module of interest (previously created using the Adding Devices facility) from the ARB Module Name: pull-down list.

4.To select sensors to be associated with the selected ARB Module:

i.Select the sensor(s) to be associated with the ARB Module from the Non-Members list.

•Holding the Shift key down during selection will allow more than one sensor to be selected.

ii.Click on the right-pointing double arrow to move the selected sensor(s) to the Members list.

•Clicking on the left-pointing double arrow moves selected sensors back into the Non-Members list.

5.When you have selected all of the sensors to be associated with the selected ARB module, click Add Members.

6.Click Yes on the displayed message window to associate the selected sensors with the selected ARB Module.

•Click No to cancel the association.

See Figure 338 below:



Figure 338

•This procedure can be repeated to associate further sensors with further ARB Modules.

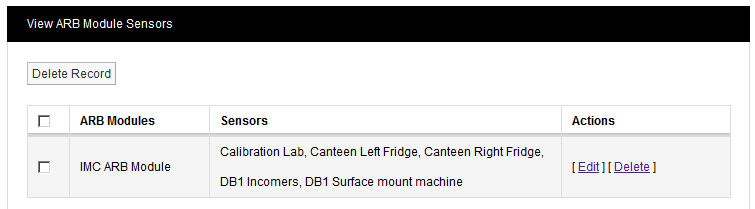

•The View ARB Module Sensors dialogue box will be displayed; showing all of the the sensors which have been associated with the selected ARB Module. See Figure 339 below for an example:



Figure 339
