Generating Barcodes

There are a number of websites offering free utilities to convert text into Barcodes.

We recommend using http://barcoding.com/resources/barcode-generator/

This website will give you a step-by-step guide for generating your barcodes. Alternatively, many office products now come with a Barcode font.

The MM7000’s Barcode reader can read the following codes:

•All UPC/EAN/JAN Codes

•EAN28 Codes

•Code 39, Code 128

•Interleave 25

Generate the barcodes, giving each a unique number to enable them to be recognised by Synergy.



Adding Barcodes to Synergy

To add a barcode to Synergy, enabling uploaded data associated with the barcode to be stored in and retrieved from the Synergy database:

1.Select Mobile Data from the main View Data menu.

2.Select Barcode from the sub-menu.

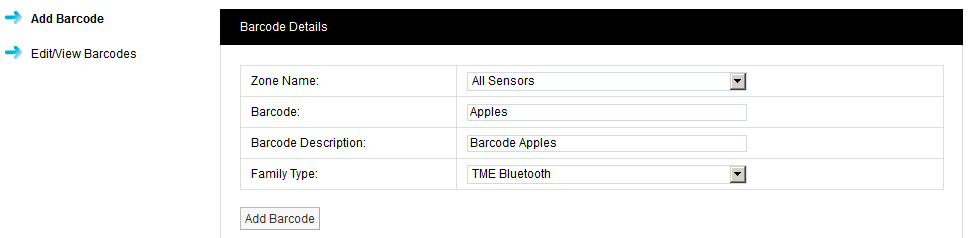

•The Barcode Details window is displayed. See Figure 458 below:



Figure 458

3.Select and add the required details for the barcode in the requisite fields.

4.Click on the Add Barcode button.

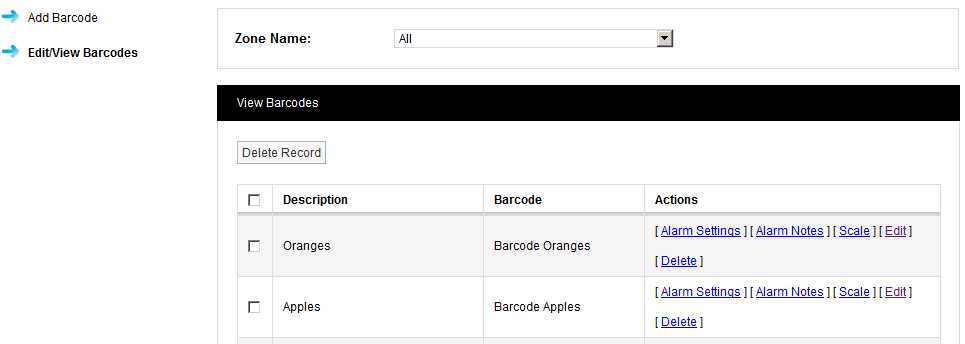

•The barcode entry is created and the View Barcodes window is displayed. See Figure 459 below:



Figure 459



Viewing Barcodes

From the View Barcodes window, barcode entries can:

•Be Filtered by Zone Name

•Have Alarm Settings entered or edited

•Have Alarm Notes added or edited

•Have their Scale defined or edited

•Have their details defined or edited

•Be deleted



Filtered by Zone Name

To filter barcode entries accordingto the Zone they are associated with:

Select the Zone containing the required barcode(s) from the Zone Name: drop-down list.

•All barcodes associated with the selected Zone are then displayed in the table.

Deleted

To delete barcode entries:

1.Either:

Highlight entries by checking the individual boxes adjacent to their entries

Or:

Select all barcode entries by checking the box in the table's header

2.Click on the Delete Record button.

Edited

•Alarm Settings

To edit Alarm Settings associated with the barcode:

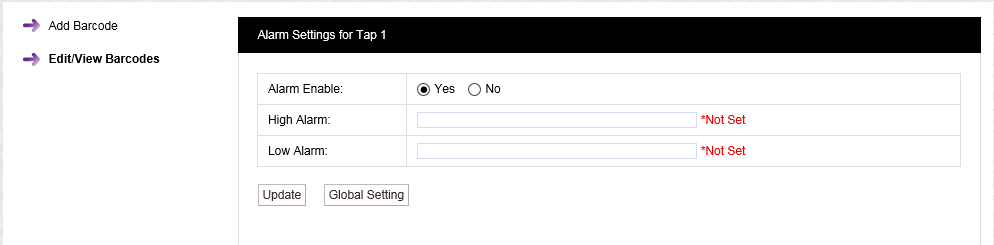

1.Click on [Alarm Settings] in the Actions column to display the Alarm Settings for <barcode name> window. See Figure 460 below:



Figure 460





2.Enable or disable the Alarm by checking the relevant Yes/No button.

3.Enter or edit existing values for the High and Low Alarm in the High Alarm: and Low Alarm: boxes.

4.Either:

Click on the Update button to enable/update the Alarm Settings.

Or:

To apply the settings Globally:

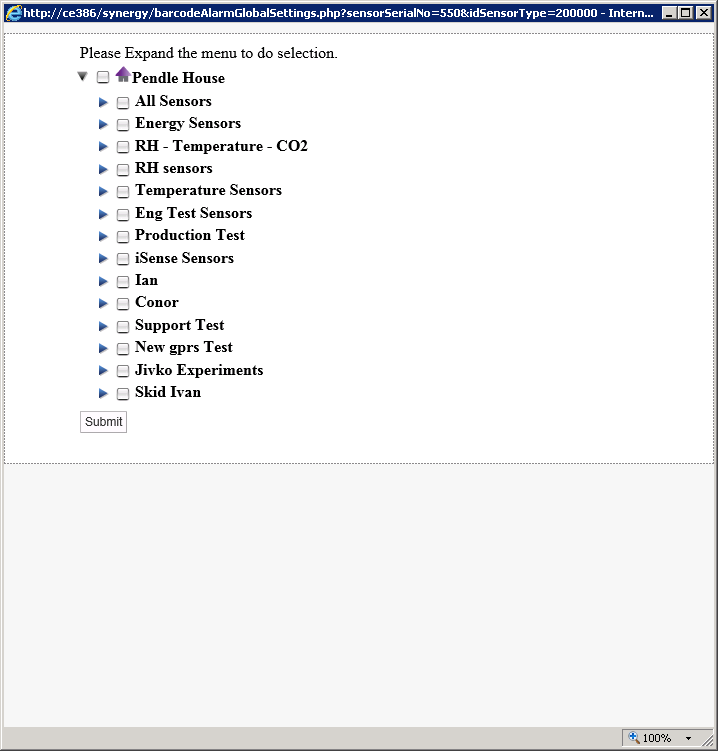

i.Click on the Global Setting button to display the following window. See See Figure 461 below:



Figure 461

ii.Expand the menu if necessary.

iii.Check the boxes to the left of the sensors you wish to apply the Alarm Settings, defined in 1. above, to.

iv.Click on the Submit button.

•Alarm Notes

To add or edit Alarm Notes for Alarms associated with the barcode:

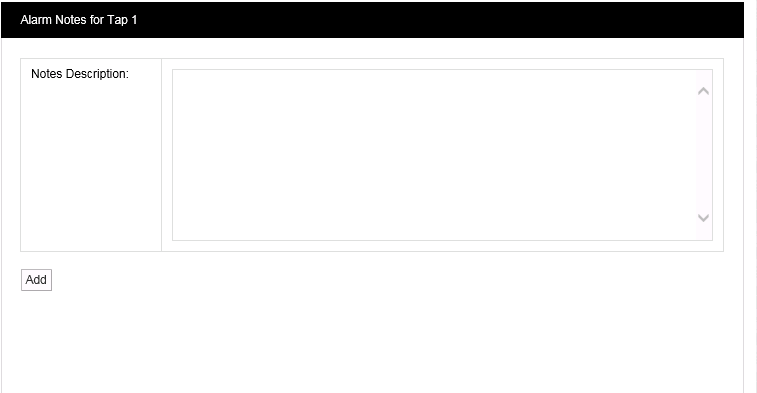

1.Click on [Alarm Notes] in the Actions column to display the Alarm Notes for <barcode name> window. See Figure 462 below:



Figure 462

2.Add a new Note for the Alarm or edit an existing Note.

3.Click on the Add button.

•Scale

To enter or edit values for displayed data's Scale:

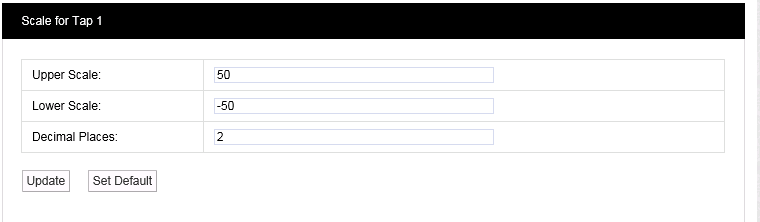

1.Click on [Scale] in the Actions column to display the Scale for <barcode name> window. See Figure 463 below:



Figure 463

2.Define or edit the range of the data to be displayed by entering upper and lower values into the Upper Scale: and Lower Scale: boxes.

3.Enter or edit the required number of decimal places the data is to be displayed to.

4.Either:

Click on the Update button to apply the Scale values.

Or:

i.Click on the Set Default button to populate the boxes with the default values.

ii.Click on Update to apply the default Scale values.

•Edit

To edit a barcode's details:

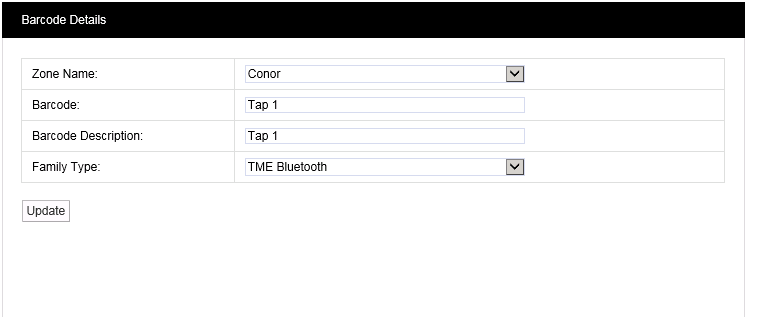

1.Click on [Edit] in the Actions column to display the Barcode Details window. See Figure 464 below:



Figure 464

2.Select the Zone to associate the barcode with from the Zone Name: drop-down list.

3.Enter a name and description for the barcode in the Barcode: and Barcode Description: boxes.

4.Select the barcode's Family Type from the Family Type: drop-down list.

5.Click on the Update button to apply the details.
