Electricity Meter Properties

Meter properties such as voltage and power factor can be altered for Current Clamp sensors.



To Change Electricity Meter Properties

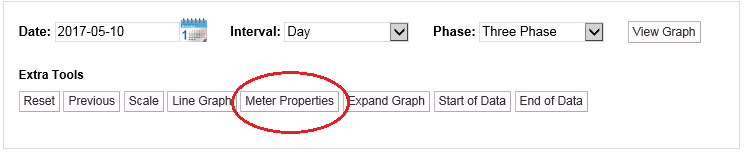

1.Click on the Meter Properties button in the Graph window. See  Figure 555 below:

Meter Properties

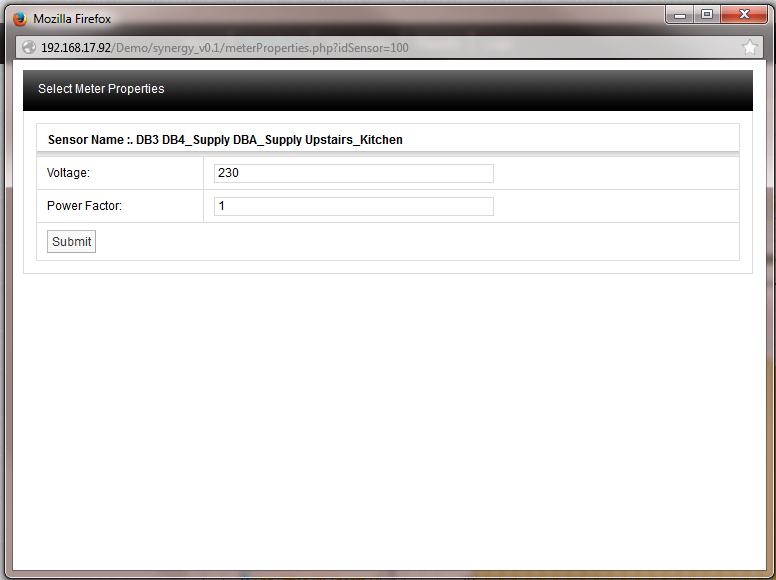

The Select Meter Properties window is displayed. See Figure 555 below:



Figure 555

Figure 181

3.Enter the required new values in their respective fields in the Select Meter Properties window.

4.Click on the Submit button to accept the changes and close the Select Meter Properties window.
